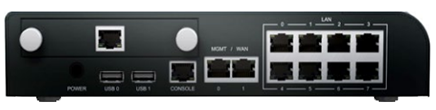

Forcepoint NGFW 115 Appliance
Enterprise SD-WAN connectivity and security for stores and branch offices

Forcepoint NGFW 110 Appliance
Forcepoint NGFW 115 Appliance

Forcepoint Products
Forcepoint NGFW Appliances
Forcepoint NGFW 115 Appliance
Get a Quote!

Click here to jump to more pricing!


Forcepoint NFGW 100 Series appliances offer robust SD-WAN connectivity and security for connecting and protecting stores, branches or home offices with true enterprise efficiency, availability and security. The 100 Series combines 10 Ethernet ports (optionally more on the NGFW 115) and optional WLAN (on the NGFW 115) in a compact desktop form that’s easy to deploy without an on-site technician.

Forcepoint NGFW provides multiple layers of security. It has built-in IPS with anti-evasion defenses, accelerated encrypted inspection, file scanning, exploit detection and more. Forcepoint’s cloud-assisted Advanced Malware Detection (sandboxing) and dynamic URL Filtering can be enabled in moments. Forcepoint’s CASB, Web, Email and DLP Security serve as ideal complements for the ultimate level of protection.

All Forcepoint NGFW systems are administered via the Forcepoint NGFW Security Management Center (SMC). It provides centralized provisioning, rapid configuration and holistic monitoring of up to 2,000 devices in even the most distributed enterprise. SMC’s high-level “Smart Policies” map business processes into security controls faster and more accurately than low-level firewall rules and enable changes to be made throughout the network in minutes. Fully customizable, interactive visualizations give administrators continuous 360° visibility to quickly identify and resolve incidents.

Features and Benefits:


  • Compact desktop design - Small footprint and easy to deploy
  • Zero-touch configuration and updating - No need for an on-site technician
  • WLAN option (NGFW 115) - All-in-one convenience for smaller locations
  • Multi-Link SD-WAN - Resilient, direct-to-internet connectivity and lower cost
  • Built-in VPN, IPS, NGFW and encrypted traffic control - Strong and fast security that doesn’t require extra licenses or equipment
  • URL filtering and advanced malware detection options - Consolidated security that removes gaps and simplifies operations
  • Enhanced Web Security powered from the cloud - Policy-based traffic forwarding for advanced protection on the web
  • Remote, interactive visibility into remote locations - Faster, centralized investigations and incident response
  • Centralized management by enterprise or MSSP - Lower TCO and less IT staff burden


  • Next Generation Firewall - Compact design, centrally managed
  • Enterprise SD-WAN - Multi-Link optimization
  • High Availability - Multi-ISP WAN clustering
  • Mobile VPN Clients - IPsec and SSL
  • IPS - Full IPS capabilities with decryption
  • Usage Control - By application, user, URL
  • Encrypted Inspection - Accelerated, policycontrolled
  • Security Proxies - SSH/SFTP, HTTP, HTTPS, TCP, UDP, TFTP, FTP, DNS
  • Anti-Bot - Command and Control channel multi-method detection
  • Anti-Virus - Reputation


  • URL Filtering - More than 120 dynamic Web security and content categories
  • Advanced Malware Detection - Cloud-based and on-premises zero-day sandboxing


Hardware Specifications NGFW 110 NGFW 115
NGFW/NGIPS Throughput
(HTTP 21 kB payload)
150 Mbps 150 Mbps
Maximum Firewall Throughput
(UDP 1518 byte)
1.5 Gbps 1.5 Gbps
Maximum Inspection Throughput
(UDP 1518 byte)
400 Mbps 400 Mbps
TLS (1.2) Inspection Performance
(44kB payload)
80 Mbps 80 Mbps
IPsec VPN Throughput
600 Mbps 600 Mbps
Concurrent IPsec VPN Tunnels 2,000 2,000
Mobile VPN Clients Max 25 Max 25
Concurrent Inspected TCP Connections 100,000 100,000
Maximum Number of Concurrent Inspected HTTP Connections 23,000 23,000
Maximum Number of Concurrent Connections 1 Million 1 Million
New TCP Connections/sec. 10,000 10,000
VLAN Tagging Unlimited2 Unlimited2
Network Interfaces
Fixed Ethernet Interfaces 10 x GE RJ45 10 x GE RJ45
Gigabit Ethernet — Copper Ports 10 10-14
WiFi Capability IEEE802.11 ac/a/b/g/n
Network I/O Slots 1 mini module
Connectors 2 x USB, 1 x serial 2 x USB, 1 x serial
Form Factor Desktop Desktop
Dimensions (W x H x D) 242 x 55 x 198mm
9.52 x 2.17 x 7.80in
Net Weight (Without Modules) 1.1 kg
2.43 lbs.
1.2 kg
2.65 lbs.
AC Power Supply 100–240 VAC 50–60 Hz, 36 W
Typical Power Consumption 15 W 18 W
Maximum Power Consumption 32 W 38 W
Maximum BTU/hr. 109 130
MTBF 120,000 hours
Operating Temperature 5–+40°C +41–+104°F
Storage Temperature -20–+70°C -4–+158°F
Relative Humidity 10%–90% Non-Condensing
Safety Certifications CB, UL/EN60950
EMI Certifications FCC part 15, CE, EN55022, EN55024

1 Performance values reflect maximums measured under test conditions and may vary based on configuration and features enabled.
2 Tagging is not available with switch ports.


Download the Forcepoint NGFW 100 Series Appliance Datasheet (.PDF)
