Forcepoint NGFW 330 Appliance
High-availability Enterprise SD-WAN in a high-security firewall for remote sites and branch offices

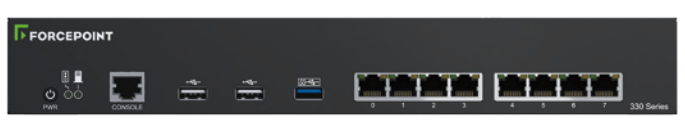

Forcepoint NGFW 330 Appliance

Forcepoint Products
Forcepoint NGFW Appliances
Forcepoint NGFW 330 Appliance
Get a Quote!

Click here to jump to more pricing!


Forcepoint NGFW 300 Series appliances offer highperformance SD-WAN connectivity and security for connecting and protecting stores, branches, or home offices with true enterprise efficiency, availability, and security. With up to 16 Gigabit Ethernet ports and optional WLAN (on the NGFW 335), the 300 Series can be used in mixed clusters of as many as 16 devices to deliver unrivaled high availability and fast access for VPNs and SD-WAN.

Forcepoint NGFW provides multiple layers of security. It has built-in IPS with anti-evasion defenses, accelerated encrypted inspection, file scanning, exploit detection, mission-critical application proxies, and more. Forcepoints cloud-assisted Advanced Malware Detection (sandboxing) and dynamic URL Filtering can be enabled in moments. Forcepoints CASB, Web, Email, and DLP Security serve as ideal complements for the ultimate level of protection.

All Forcepoint NGFW systems are administered via the Forcepoint NGFW Security Management Center (SMC). It provides centralized provisioning, rapid configuration, and holistic monitoring of up to 2,000 devices in even the most distributed enterprise. SMC’s high-level “Smart Policies” map business processes into security controls faster and more accurately than low-level firewall rules and enable changes to be made throughout the network in minutes. Fully customizable, interactive visualizations give administrators continuous 360° visibility to quickly identify and resolve incidents.

Features and Benefits:


  • Compact desktop design - Small footprint and easy to deploy
  • Zero-touch configuration and updating - No need for an on-site technician
  • Gigabit Ethernet and WLAN option (NGFW 335W) - All-in-one convenience for smaller locations
  • Active-active, mixed clustering - High availability with higher performance and reuse of older devices
  • Multi-Link SD-WAN clustering of broadband and leased lines - Resilient, direct-to-internet connectivity for lower cost alternative to MPLS
  • Built-in VPN, IPS, NGFW, and encrypted traffic control - Strong and fast security that doesn’t require extra licenses or equipment
  • URL filtering and advanced malware detection options - Consolidated security that removes gaps and simplifies operations
  • Enhanced Web Security powered from the cloud - Policy-based traffic forwarding for advanced protection on the web
  • Remote, interactive visibility into remote locations - Faster, centralized investigations and incident response
  • Centralized management by enterprise or MSSP - Lower TCO and less IT staff burden
  • Robust hardware - High MTBF and Power Dual power feed minimize the risk of service outages at remote sites


  • Next Generation Firewall - Compact design, centrally managed
  • Enterprise SD-WAN - Multi-Link optimization of ISP connections and traffic
  • High Availability - Appliance and network clustering
  • Mobile VPN Clients - Unlimited, IPsec, and SSL
  • IPS - Full IPS capabilities with decryption
  • Usage Control - By application, user, URL
  • Encrypted Inspection - Accelerated, policycontrolled
  • Security Proxies - SSH/SFTP, HTTP, HTTPS, TCP, UDP, TFTP, FTP, DNS
  • Threat Intelligence - Forcepoint ThreatSeeker Intelligence
  • Anti-Bot - Command and Control channel multi-method detection
  • Anti-Virus - Reputation and local AV scan


  • URL Filtering - More than 120 dynamic Web security and content categories
  • Advanced Malware Detection - Cloud-based and on-premises zero-day sandboxing


Hardware Specifications NGFW 330 NGFW 331 NGFW 335 NGFW 335W
NGFW/NGIPS Throughput
(HTTP 21 kB payload)
350 Mbps 700 Mbps 1000 Mbps 1000 Mbps
Maximum Firewall Throughput
(UDP 1518 byte)
4 Gbps 5 Gbps 7 Gbps 7 Gbps
Maximum Inspection Throughput
(UDP 1518 byte)
1 Gbps 1.8 Gbps 2.5 Gbps 2.5 Gbps
TLS (1.2) Inspection Performance
(44kB payload)
200 Mbps 400 Mbps 550 Mbps 550 Mbps
IPsec VPN Throughput
1.4 Gbps 2 Gbps 3 Gbps 3 Gbps
Maximum Number of Concurrent Connections 2.9 Million 7 Million 7 Million 7 Million
Concurrent IPsec VPN Tunnels 10,000 20,000 20,000 20,000
Mobile VPN Clients Unlimited Unlimited Unlimited Unlimited
Concurrent Inspected TCP Connections 100,000 200,000 200,000 200,000
Maximum Number of Concurrent Inspected HTTP Connections 50,000 150,000 150,000 150,000
New TCP Connections/sec. 40,000 70,000 80,000 80,000
VLAN Tagging Unlimited Unlimited Unlimited Unlimited
Virtual Contexts
3/3 3/3 3/3 3/3
Network Interfaces
Fixed Ethernet Interfaces 8 x GE RJ45 8 x GE RJ45 8 x GE RJ45 8 x GE RJ45
Gigabit Ethernet — Copper Ports 8 8 8-16 8-16
WiFi Capability IEEE802.11 ac/a/b/g/n
Network I/O Slots 2 mini modules 2 mini modules
Connectors 3 x USB, 1 x serial 3 x USB, 1 x serial 3 x USB, 1 x serial 3 x USB, 1 x serial, wireless
Form Factor Desktop Desktop Desktop Desktop
Dimensions (W x H x D) 305 x 44 x 196mm
12.01 x 1.73 x 7.72in
305 x 44 x 247mm
12.01 x 1.73 x 9.72in
Net Weight (Without Modules) 2.1 kg
4.63 lbs.
2.1 kg
4.63 lbs.
2.3 kg
5.07 lbs.
2.4 kg
5.29 lbs.
AC Power Supply 100–240 VAC 50–60 Hz, 65 W
Typical Power Consumption 25 W 27 W 30 W 35 W
Maximum Power Consumption 36 W 38 W 50 W 55 W
Maximum BTU/hr. 123 130 171 188
Dual Power Supply Optional
MTBF 150,000 hours
Operating Temperature 0–+45°C +32–+113°F
Storage Temperature -20–+70°C -4–+158°F
Relative Humidity 10%–90% Non-Condensing
Safety Certifications CB, UL/EN60950
EMI Certifications FCC part 15, CE, EN55022, EN55024


Download the Forcepoint NGFW 300 Series Appliance Datasheet (.PDF)
