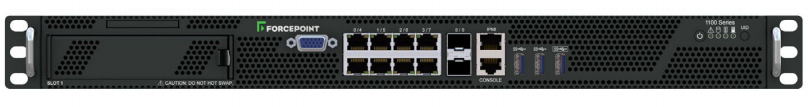

Forcepoint NGFW 1101 Appliance
High-availability enterprise SD-WAN connectivity for office environments

Forcepoint NGFW 1101 Appliance

Forcepoint Products
Forcepoint NGFW Appliances
Forcepoint NGFW 1101 Appliance
#N1101
Our Price: $9,000.00

Click here to jump to more pricing!

Overview:

Forcepoint NGFW 1100 Series appliances offer modular SD-WAN connectivity and protection to boost the performance and productivity of branch offices, midsized organizations and small data centers. The 1100 Series combines networking and security features like SD-WAN multi-link optimization, a layer 3 firewall and VPN with secure routing, a NAT and VPN gateway, a layer 2 IDS and an inline IPS It can be used in mixed clusters of as many as 16 devices to deliver unrivaled high availability and fast access for VPNs and SD-WAN.

Forcepoint NGFW provides multiple layers of security. It has built-in IPS with anti-evasion defenses, accelerated encrypted inspection, file scanning, exploit detection, mission-critical application proxies and more. Forcepoint’s cloud-assisted Advanced Malware Detection (sandboxing) and dynamic URL Filtering can be enabled in moments. Forcepoint’s CASB, Web, Email and DLP Security serve as ideal complements for the ultimate level of protection.

All Forcepoint NGFW systems are administered via the Forcepoint NGFW Security Management Center (SMC). It provides centralized provisioning, rapid configuration and holistic monitoring of up to 2,000 devices in even the most distributed enterprises. SMC’s high-level “Smart Policies” map business processes into security controls faster and more accurately than low-level firewall rules and enable changes to be made throughout the network in minutes. Fully customizable, interactive visualizations give administrators continuous 360° visibility to quickly identify and resolve incidents.

Features and Benefits:

Benefits:

  • Modular, 1U rack-mounted design - Efficient use of space and power
  • Gigabit Ethernet and modular interfaces - High performance connectivity that adapts to network changes
  • Active-active, mixed clustering - High availability with higher performance and reuse of older devices
  • Multi-Link SD-WAN clustering of broadband and leased lines - Resilient connectivity and lower cost
  • Built-in VPN, IPS, NGFW, and encrypted traffic control - Strong and fast security that doesn’t require extra licenses or equipment
  • Sidewinder mission-critical application proxies - High-assurance security for sensitive applications and networks
  • URL Filtering and Advanced Malware Detection options - Consolidated security that removes gaps and simplifies operations
  • Enhanced Web Security powered from the cloud - Policy-based traffic forwarding for advanced protection on the web
  • Centralized management by enterprise or MSSP - Lower TCO and less IT staff burden

Feature

  • Next Generation Firewall - 1U, high-speed modular interfaces
  • Enterprise SD-WAN - Multi-Link optimization
  • High Availability - Appliance and network clustering
  • Mobile VPN Clients - Unlimited, IPsec, and SSL
  • IPS - Full IPS capabilities with decryption
  • Usage Control - By application, user, URL
  • Encrypted Inspection - Accelerated, policy-controlled
  • Security Proxies - SSH/SFTP, HTTP, HTTPS, TCP, UDP, TFTP, FTP, DNS
  • Anti-Bot - Command and Control channel multi-method detection
  • Anti-Virus - Reputation and local AV scan

Optional:

  • URL Filtering - More than 120 dynamic Web security and content categories
  • Advanced Malware Detection - Cloud-based and on-premises zero-day sandboxing

Specifications:


Hardware Specifications NGFW 1101 NGFW 1105
Processor
NGFW/NGIPS Throughput
(HTTP 21 kB payload)
1.5 Gbps 3 Gbps
Maximum Firewall Throughput
(UDP 1518 byte)
50 Gbps 60 Gbps
Maximum Inspection Throughput
(UDP 1518 byte)
3 Gbps 6 Gbps
TLS (1.2) Inspection Performance
(44kB payload)
800 Mbps 1.6 Gbps
IPsec VPN Throughput
(AES-GCM-256)
4.5 Gbps 8.5 Gbps
Concurrent IPsec VPN Tunnels 20,000 20,000
Mobile VPN Clients Unlimited Unlimited
Concurrent Inspected TCP Connections 500,000 1 Million
Maximum Number of Concurrent Inspected HTTP Connections 450,000 1 Million
Maximum Number of Concurrent Connections 7.5 Million 12 Million
New TCP Connections/sec. 100,000 200,000
VLAN Tagging Unlimited Unlimited
Virtual Contexts
(default/maximum)
5/25 10/100
Network Interfaces
Fixed Ethernet Interfaces 8 x GE RJ45, 2 x 10Gbps SFP+ 8 x GE RJ45, 2 x 10Gbps SFP+
Gigabit Ethernet — Copper Ports 8-16 8-16
10 Gigabit Ethernet ports 2-6 2-6
Network I/O Slots 1 1
Connectors 3 x USB, 1 x serial, VGA, IPMI Ethernet 3 x USB, 1 x serial, VGA, IPMI Ethernet
Physical
Form Factor 1RU 1RU
Dimensions (W x H x D) 439 x 44 x 300mm
17.28 x 1.73 x 11.81in
Net Weight (Without Modules) 4.8 kg
10.58 lbs.
4.8 kg
10.58 lbs.
AC Power Supply 100–240 VAC 50–60 Hz, 180 W
Typical Power Consumption 60 W 70 W
Maximum Power Consumption 95 W 100 W
Maximum BTU/hr. 324 341
MTBF 100,000 hours
Operating Temperature 0–+40°C +32–+104°F
Storage Temperature -20–+70°C -4–+158°F
Relative Humidity 10%–95% Non-Condensing
Safety Certifications CB, UL/EN60950, BSMI, CTICK, NOM
EMI Certifications FCC part 15, CE, EN55022, EN55024, VCCI-CISPR

Documentation:

Download the Forcepoint NGFW 1100 Series Appliance Datasheet (.PDF)
